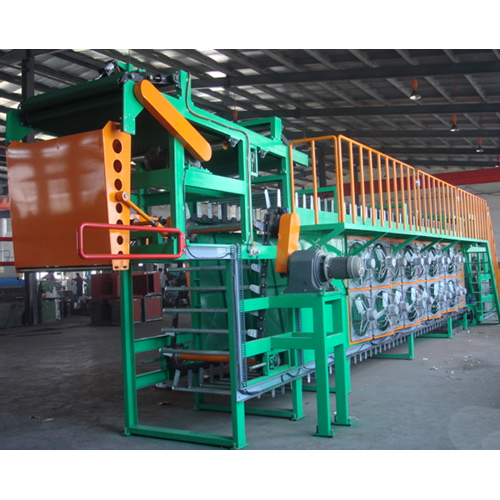

Batch Off Machine that our company is presenting is engineer to satisfy the need at the time of blending process of film cooling, laminating and splicing. The film cooling mode of the machine can according to the requirement of client adopts immersion or spray. It is well featured with stainless steel made woven mesh net for lifting purposes. Horizontal & vertical blade cutter can also be fitted as per client's requirement. There is a frequency motor, which controls the length of hanging rubber. Additionally, the Batch Off Machine varies in models, capacities and dimensions.
Specifications:
Model | WB-800 | WB-1000 |
---|---|---|
Rubber Sheet Width | 800 mm | 1000 mm |
Rubber Sheet Thickness | 8~12 | 8~12 |
Boom Height | 1300 mm | 1300 mm |
The Number Of Boom(Stainless) | 110 Pcs | 256 PCS |
Capacity | 2400kg/hr | 3000kg/hr |
Air Pressure | 6 kg/cm2 | 6 kg/cm2 |
Voltage | 380V | 380V |
The Number Of Cooling Fan | 20 PCS | 36 PCS |
Lead Taken And Swing Equipment | YES | YES |
Rubber Batch Printing Device | YES | YES |
Front Slitting Device | YES | YES |
Feeding Release Agent Tank | YES | YES |
After Cooling, | Not Higher than | Not Higher than |
Machine Dimension Lxwxh | 17000mmx2000mmx3300mm | 22600mmx2000mmx3300mm |
![]() |
