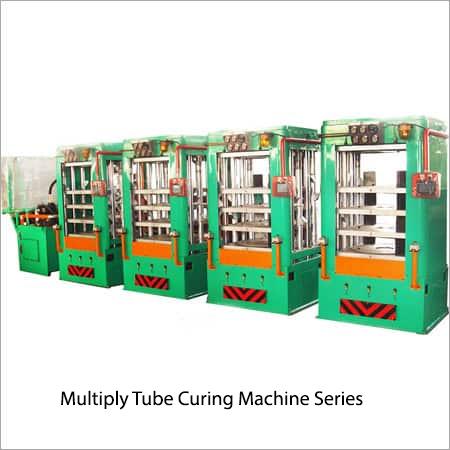

Multiply Tube Curing Machine

Multiply Tube Curing Machine
Multiply Tube Curing Machine
Send Inquiry
Product Code : WS950-4S
Product Description

Multiply Tube Curing Machine Series that we design and fabricate is most widely used in automotive industry for doing tube curing task of varied vehicles with high efficiency. This machine uses advanced tube curing process, which calls for a drive allowing the mould halves to close within the shortest time span so as to prevent premature curing of non-vulcanized as well as relatively thin material in the hot mould and to infuse the process of tube curing under internal pressure as fast as possible. The Multiply Tube Curing Machine Series is available in varied models, and following specifications:

Model

WS950-4S

WS950-3S

Vehicle Types

B/C, M/C

B/C,M/C

Ply

4 PLIES

3 PLIES

Mold O.D.

760 mm

840 mm

Mold Thickness

170 mm

230 mm

Inner Pressure Curing

8kg/cm2

10kg/cm2

Max. Clamping Force

53 tons

66 tons

Mold Closing Time

5 sec

7 sec

Id. Of Oil Hydraulic Cylinder

Ø180mm

Ø180mm

Curing Time For Each Ply

Time Adjustable

Time Adjustable
