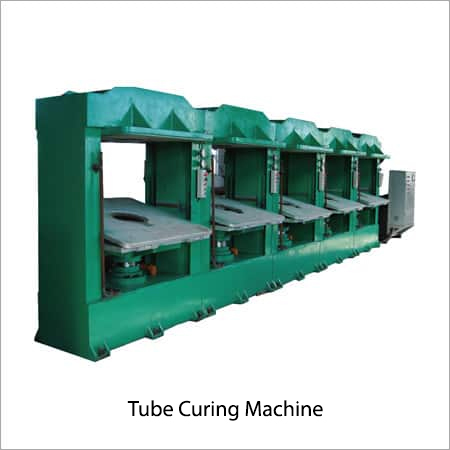

Tube Curing Machine

Tube Curing Machine
Tube Curing Machine
Send Inquiry
Product Code : WS950-180
Product Description

Tube Curing Machine that we offer is designed for tube curing of bicycles, motorcycles and other vehicles. The entire tube curing process is automatically regulated or controlled. This type of machine cannot be used for man operated loading as well as removal. This machine does tube curing task in various stream pressures, strokes, and clamping force with the support of oil hydraulic cylinder and according to the vehicles types. The heavy duty cast iron structure ensure vibration free constant performance. The Tube Curing Machine comes in several models, dimensions and capacities to pick from.

Specifications:

Model

WS950-150

WS950-180

WS950-200

WS950-280

WS950-360

VEHICLE TYPES

B/C , M/C

M/C , L/T

TRUCK ; BUS ; L/T

TRUCK ; BUS ; L/T

OTR

TUBE SIZE

/

/

8.25-20~12.00-20
6.00-12~8.25-16

1200/20/24

1600/24

MOLD O.D

780 mm

800 mm

1120 mm

1420 mm

1800 mm

MOLD THICKNESS

180 mm

230 mm

230 mm~360 mm

375 mm~480 mm

400 mm~600 mm

STEAM PRESSURE

11kg /cm2

11kg /cm2

11kg /cm2

11kg /cm2

11kg /cm2

MAX. CLAMPING FORCE

30 tons

45 tons

55 tons

110 tons

180 tons

MOLD CLOSING TIME

4~6 sec

4~6 sec

4~6 sec

6~8 sec

10~12 sec

ID. OF OIL
HYDRAULIC CYLINDER

Ø150 mm

Ø180 mm

Ø200 mm

Ø280 mm

Ø360 mm

MAX. STROKE OF OIL
HYDRAULIC CYLINDER

400 mm

500 mm

550 mm

650 mm

800 mm

STANDARD MODE

1SET 5UNITS

1SET 6UNITS

1SET 6UNITS

1SET 6UNITS

1SET 3UNITS

STRUCTURE

4 COLUMNS
HYDRAULIC TYPE

4 COLUMNS
HYDRAULIC TYPE

4 COLUMNS
HYDRAULIC TYPE

4 COLUMNS
HYDRAULIC TYPE

4 COLUMNS
HYDRAULIC TYPE

Trade Information
  • FOB Port
  • Taiwan sea port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cash Advance (CA)
  • Delivery Time
  • 4 Months
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, Asia
  • Main Domestic Market
  • All India
