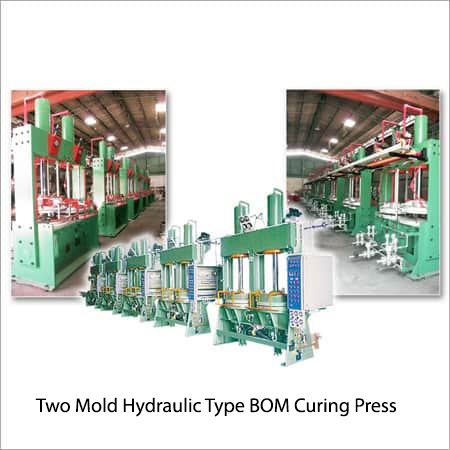

Two Mold Hydraulic Type B-O-M Curing Press

Two Mold Hydraulic Type B-O-M Curing Press
Two Mold Hydraulic Type B-O-M Curing Press
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 3000.00 - 8000.00 USD ($)
Product Specifications
  • Product Type
  • Hydraulic Curing Press
  • Color
  • Customized
Product Description

Two Mold Hydraulic Type B-O-M Curing Press that we put forward by us is used all over the globe in automotive industry for the purpose of doing tube curing task. This kind of curing pressure is ideal for tube motorcycles, bicycles and other vehicles. It is easy to operate for its user-friendly PLC control panel and functions. The pressure occupies less space due to its robust base, sturdy structure and dimensional accuracy. The Two Mold Hydraulic Type B-O-M Curing Press comes in different models, dimensions, capacities and other configurations.

Specifications:

Model

WS850-32

WS850-36

WS850-42

Tire Product Scope

600-14, and 350-19

650-14, and 325-21

900-16, and 50-18

Dia. of Platen

813 mm

914 mm

1067 mm

Max. Clamping Force

85 tons

100 tons

145 tons

Thickness of Mold

86~250 mm

100~250 mm

200~300 mm

Max. Mold Dia. Range

760 mm

860 mm

1000 mm

Max. Height of Green Tire

400 mm

500 mm

550 mm

Platen Steam Pressure

15 kgf / cm

15 kgf / cm

15 kgf / cm

Inner Pressure

23 kgf / cm

23 kgf / cm

23 kgf / cm


Trade Information
  • FOB Port
  • Taiwan sea port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 50 Set/Sets Per Month
  • Delivery Time
  • 4 Months
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • North America, Central America, Australia, Africa, Middle East, Western Europe, Eastern Europe, South America, Asia
  • Main Domestic Market
  • All India
